The intelligent electromagnetic flowmeter consists of two parts: sensors and converters. It works based on Faraday's law of electromagnetic induction and is used to measure the volumetric flow rate of conductive liquids with a conductivity greater than 5 μ S/cm. It is an inductive instrument for measuring the volumetric flow rate of conductive media. In addition to measuring the volumetric flow rate of general conductive liquids, it can also be used to measure the volumetric flow rate of strongly corrosive liquids such as strong acids and alkalis, as well as homogeneous liquid-solid two-phase suspensions such as mud, slurry, and pulp. Widely used in industrial sectors such as petroleum, chemical, metallurgical, textile, papermaking, environmental protection, food, as well as municipal management, water conservancy construction, river dredging and other fields for flow measurement.
Product Details

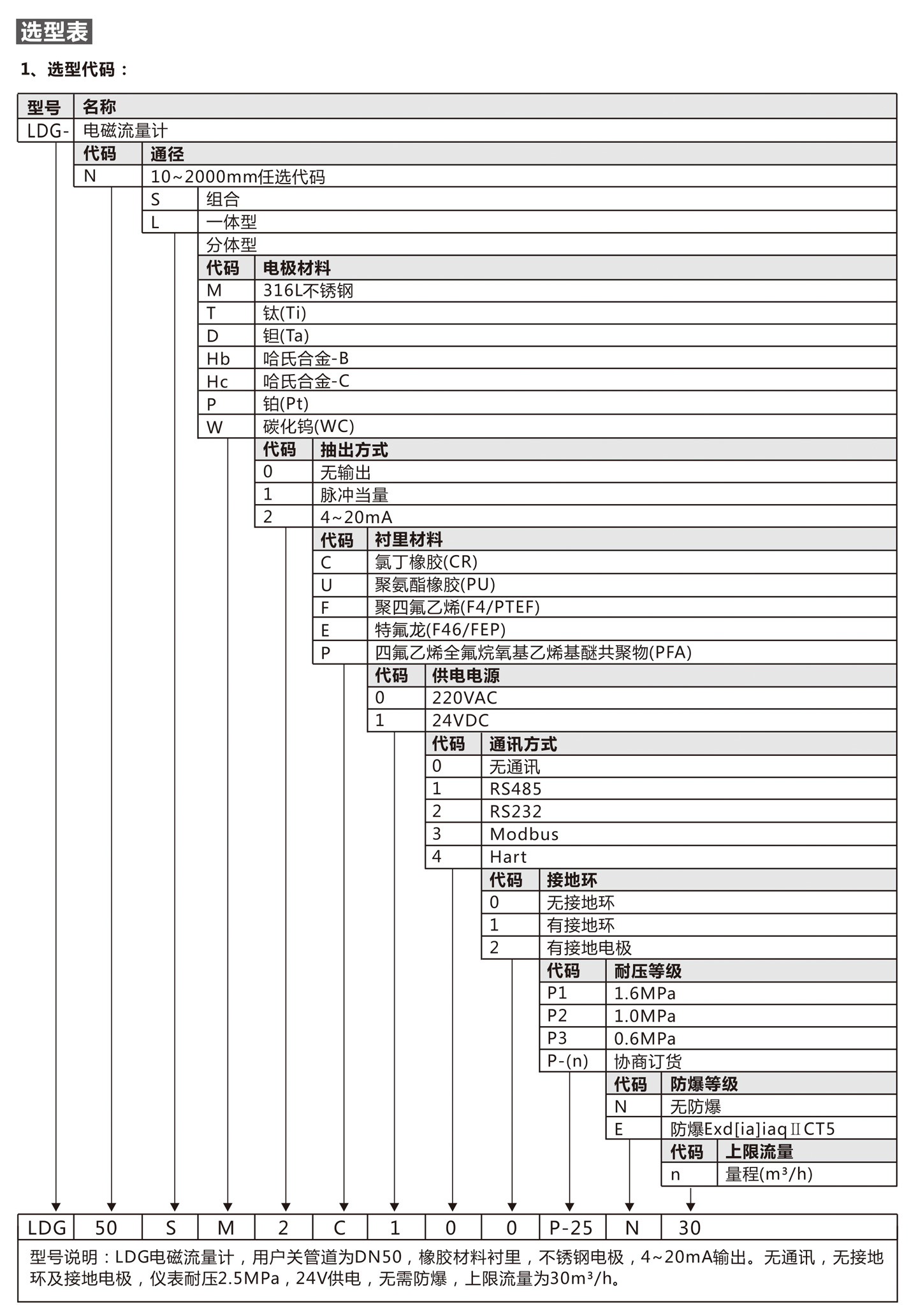

Technical Parameters
|
Nominal diameter (mm) (Special specifications can be customized) |
Pipeline type PTFE lining: DN10~DN600 Pipeline rubber lining: DN40~DN1200 |
|
| flow direction | Positive, negative, net traffic | |
| turndown ratio | 150：1 | |
| repeatability error | ± 0.1% of the measured value | |
| accuracy class | Pipeline type: 0.5 level, 1.0 level | |
| Temperature of the measured medium | Ordinary rubber lining: -20~60 ℃ | |
| High temperature rubber lining: -20~90 ℃ | ||
| PTFE lining: -30-100 ℃ | ||
| High temperature PTFE lining: -20~180 ℃ | ||
|
Rated working pressure (High voltage can be customized) |
DN6‑DN80：≤1.6MPa DN100‑DN250：≤1.0MPa DN300‑DN1200：≤0.6MPa |
|
| Flow velocity range | 0.1‑15m/s | |
| Conductivity range | The conductivity of the measured fluid is ≥ 5 μ s/cm | |
| current output | load resistor | 0～10mA：0～1.5kΩ |
| 4～200mA：0～750 kΩ | ||
| Digital frequency output |
The upper limit of the output frequency can be set within 1-5000Hz with a transistor collector open circuit bidirectional output with photoelectric isolation. When the external power supply is ≤ 35V and conducting, the maximum collector current is 250mA |
|
| Power supply | AC220V or DC24V | |
| Require the length of the straight pipe section | Upstream ≥ 5DN, downstream ≥ 2DN | |
| connection method | The flowmeter and piping are connected by flanges, and the flange connection size should comply with the provisions of GB11988 | |
| Explosion-proof rating | mdIIBT4 | |
| Protection Rating | IP65， Specially customized up to IP68 | |
| ambient temperature | -25～ 60℃ | |
| relative temperature | 5%～90% | |
| Total power consumption | Less than 20W | |
