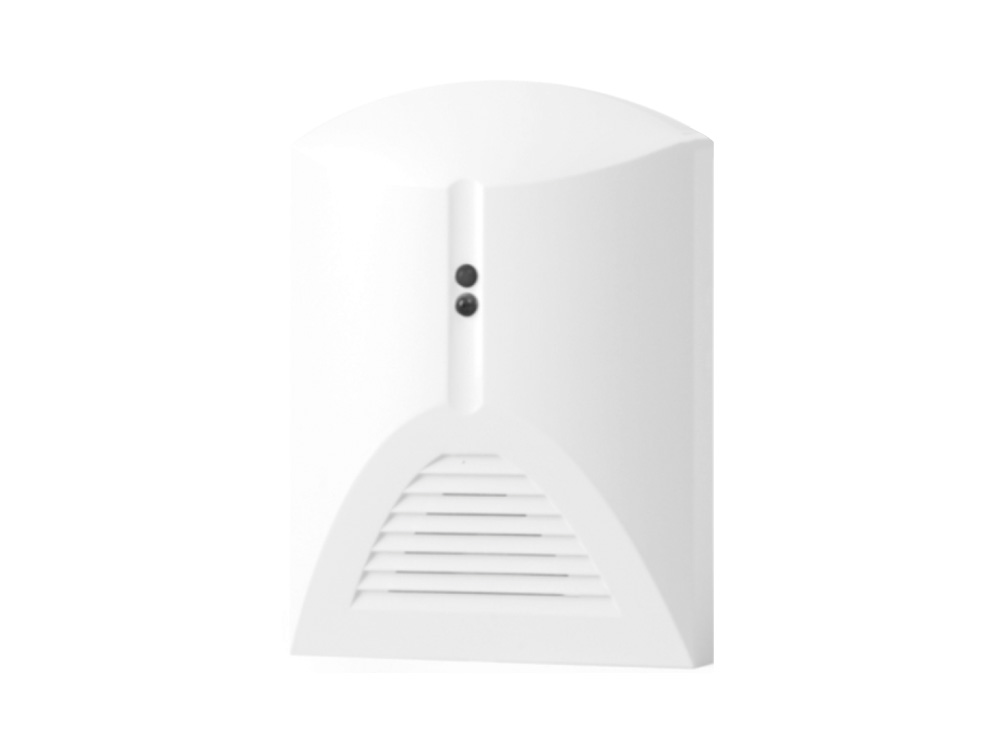

Glass breakage detector GBD-301

The appearance is beautiful and elegant, and the installation is convenient. The monitoring range of the detector is the entire room (regardless of the number of windows), and the sensitivity can be continuously adjusted. The optimal working point can be set according to the environmental conditions to prevent false alarms without reducing the sensitivity of the flame-retardant shell. When the glass breaks, an alarm will be triggered to prevent human damage and illegal intrusion. The product is widely applicable to flat, reinforced, and laminated glass. The detector is suitable for detecting glass breakage alarms in buildings, mansions, hotels, jewelry stores, banks, and other places that require monitoring

Various places.

Product Details

Technical specifications


working voltage DC 9~16V
quiescent current ≤15mA(DC 12V)
alarm current ≤25mA
detection range High sensitivity: 9m/Low sensitivity: 5m
Test time ≤ 60 seconds
Operating Temperature -10℃ ~ 80℃(14°F~176°F)
relay output Normally closed, contact capacity 28VDC, 80mA
Anti-tamper switch Normally closed, contact capacity 28VDC, 100mA
Overall dimensions 92.0mm×67.0mm×26.4mm
weight 100g
