Mobile detectors include two types of products, MC760 and MC860 (microwave infrared dual detector), which use precision "Fresnel lens technology" and reflective lenses with a lower plastic structure to avoid blind spots in protection. Combined with advanced "real object movement recognition", it can accurately determine whether it is a real intruder or other interference factors that may cause false alarms. Combined with "energy accumulation and dynamic time segmentation" technology, it eliminates various interference that ordinary detectors cannot overcome, eliminates false alarms, missed alarms, etc. Its performance far exceeds other ordinary passive infrared detectors, and its appearance design is suitable for most indoor decoration.

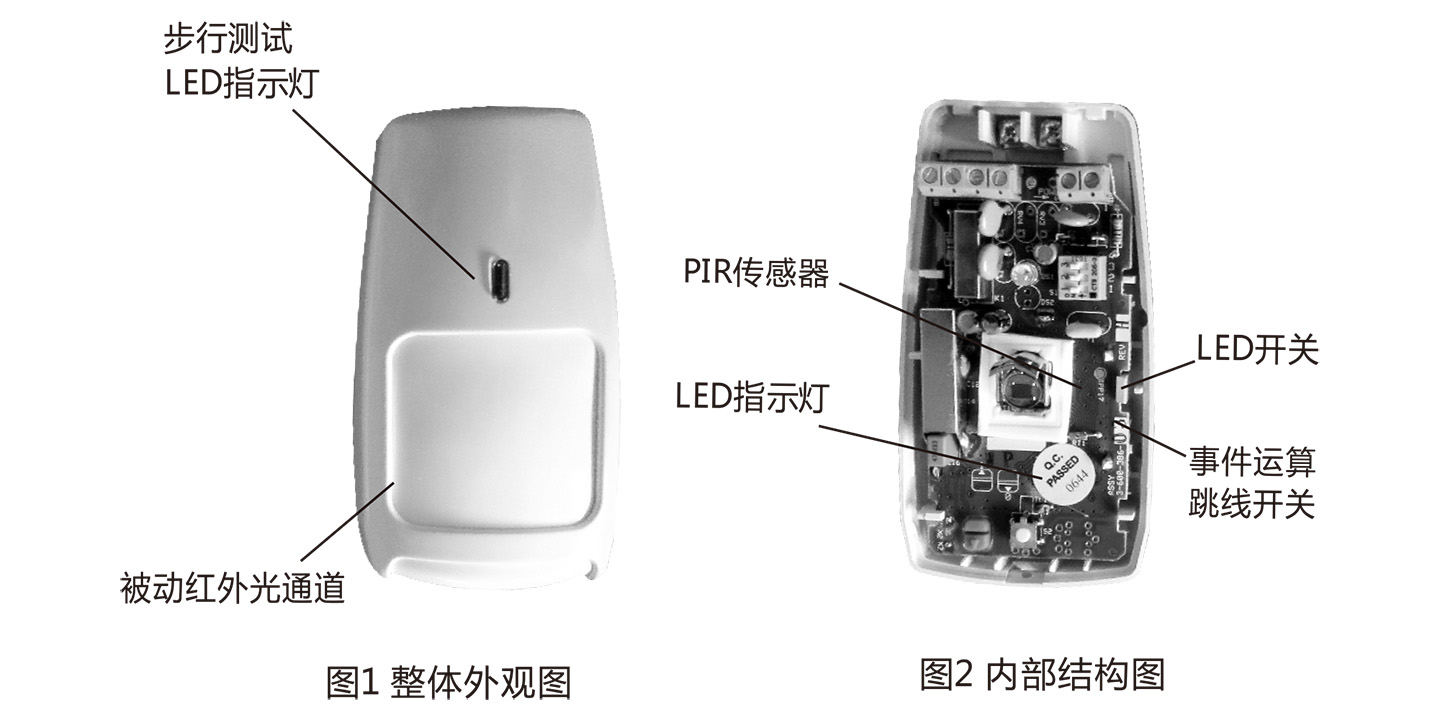

Product Details
Technical specifications
| detection range | 12m(MC-735) | coverage area | 22 12 6 4(MC-735) |
| detection range | 15m(MC-760) | coverage area | 44 12 6 4(MC-760) |
| working power supply | 9~16 Vdc | coverage area | 12mX12m(MC-735) |
| current consumption | Approximately 15mA @ 12Vdc | coverage area | 15mX15m(MC-760) |
| working environment | -10-50 ℃, 5-95% RH (non condensing) | Overall dimensions | 112mm (length) X59mm (width) X41mm (height) |
| Open instruction | The indicator light flashes for 10 seconds | Anti disassembly interface | Solid state relay (NC) 50mA/30V DC |
| Alarm output | Solid state relay (NC) 50mA/30V | Preventing pet size | 15Kg |
| Alarm indication | The LED indicator light is on | Event Calculator | 1-2 Mobile Events (optional) |
| Line opening | 2-3 seconds (upon alarm) | Anti-visible light | >9000LUX (indoor) |
