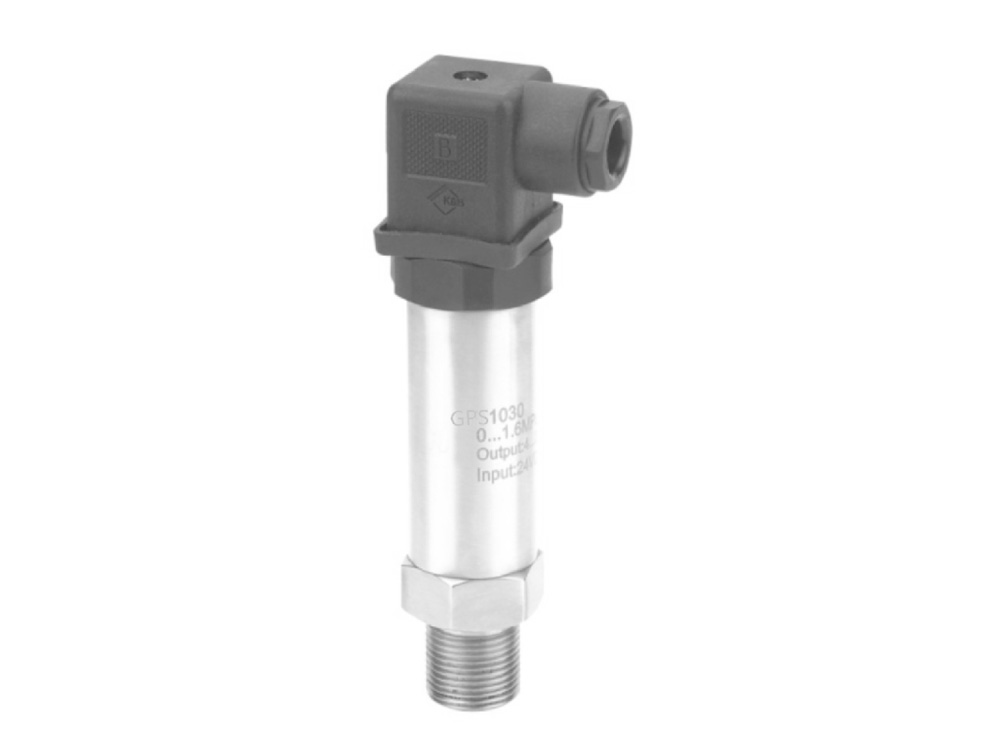

The GPs1030 series pressure transmitter is an industrial product with high precision, high reliability, high cost-effectiveness, and variable range. Widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquids, and gases.
Product Details
Technical Parameters
| Regular | Numerical | ||||
| Pressure Range | -0.1MPa......-0.01MPa~0~0.01MPa......100MP | ||||
| Overload pressure | 1.5 times rated pressure | ||||
| Breaking pressure | 3 times the rated pressure | ||||
| precision | ± 0.25% F.S, ± 0.5% F.S | ||||
| Stability | Typical value 0.25% F.S, maximum value 0.4% F.S | ||||
| Operating temperature | -40 ℃~85 ℃ (customizable -40 ℃~125 ℃) | ||||
| compensation temperature | -10 ℃~70 ℃ (customizable full temperature compensation products) | ||||
| Compatible media | All corrosive media compatible with 1Cr18Ni9Ti | ||||
| Electrical performance | Two line system | three-wire system | four-wire system | ||
| output signal | 4~20mA | 0~20mA | 0~5V | 0.5~4.5V | 0~20mA |
| 0~10Vdc | 1~5V | 0.5~3V | 0~5/10Vdc | ||
| Power supply | 10~30Vdc | 11~30Vdc | 8~24Vdc | 5V Ratio | 8/11~30Vdc |
| load resistor | (U-10)/0.02(Ω) | >20KΩ | |||
| insulation | >100MΩ@50V | ||||
| Electrical Connection | DIN43650， IP65 protection; Aviation plug GX16-7, protection IP45; Fixed wire sleeve outlet, with an IP68 protective shell; | ||||
| Pressure interface | M20×1.5， G1/2，G1/4，G1，NPT1/2,NPT1/4，R1/4， Specially made (Ht) | ||||
| response time | 10ms | ||||
| Electromagnetic Compatibility | Electromagnetic radiation: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2 | ||||
Unit conversion: 1Kg/cm ²=14.2PSI 1Bar=14.5PSI
