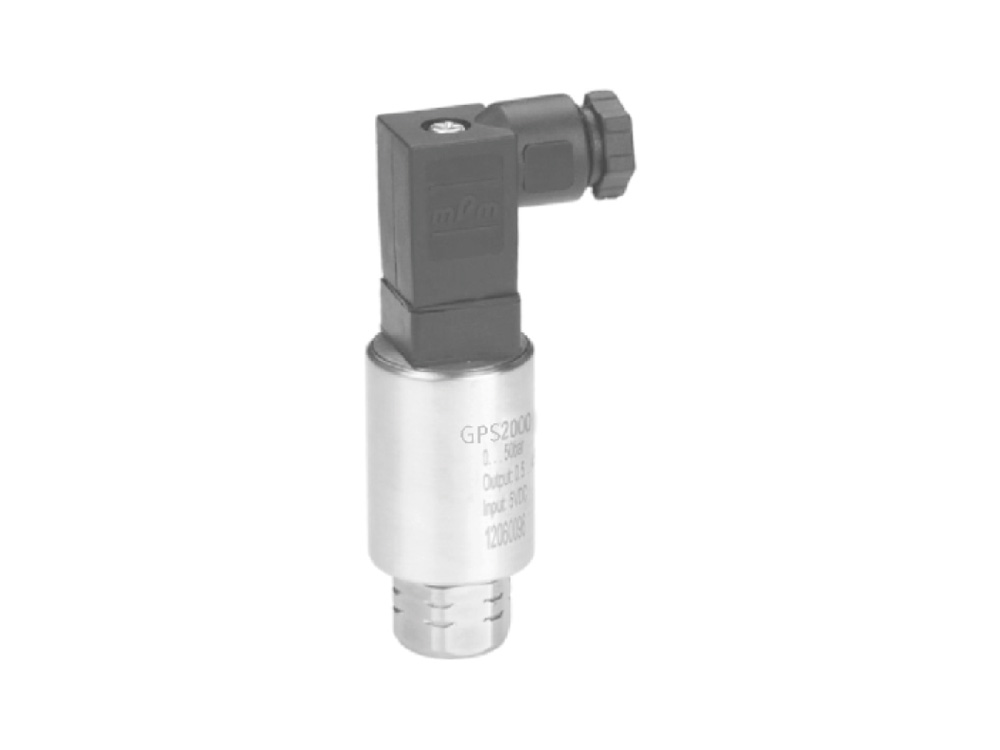

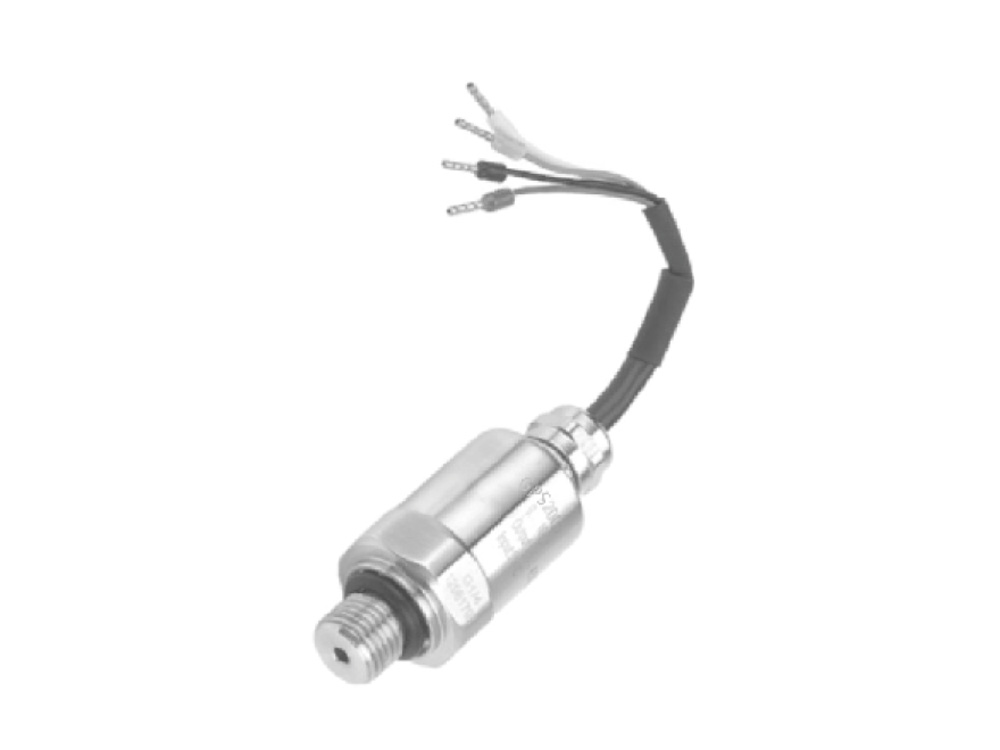

GPS2000 series pressure sensor

The GPS2000 series pressure transmitter is a cost-effective, high-quality, and highly reliable product for large-scale, civilian, and industrial use. Small in size, light in weight, and compact in structure, it is widely used for pressure measurement in compressors, automobiles, air conditioners, and other fields. This product adopts high-quality stainless steel structure, and the pressure core and sensor chip are imported from abroad. It utilizes calibration and temperature compensation technology, and has passed intrinsic safety certification and CE certification. Standard voltage and current output modes. This product is produced on a large scale using advanced technology and processes, with advanced design, perfect craftsmanship, strict production, sophisticated equipment, standardized management, and a sound quality assurance system. It is widely used worldwide.

Product Details

Technical Parameters


Regular numerical value
Pressure range -1~0... 100 bar, 0~2... 3 bar, 0~4... 60 bar (conventional pressure range), 0~61... 600 bar
Overload pressure 1.5 times rated pressure
Breaking pressure 3 times the rated pressure
precision ± 0.5% F.S, ± 1.0% F.S
Stability Typical value 0.5% F.S, maximum value 1% F.S
Operating temperature -40℃~100℃
compensation temperature -10℃~80℃
Storage temperature -50℃~125℃
Compatible media All corrosive media compatible with 1Cr18Ni9Ti and ceramics
Electrical performance Two line system three-wire system
output signal 4~20mA 0.5~4.5V 0/1~5V 0~10V
Power supply 10~30Vdc 5Vdc 10~30Vdc/ac 12~30Vdc
load resistor (U‑10)/0.02(Ω) >100KΩ
insulation >100MΩ@50V
Appliance Connection Packard, DIN43650C, DIN72585, M12 series, Cable
Enclosure protection IP67
Line protection IP67
Pressure interface G1/4, NPT1/4, 7/16-20KNF, M20 × 1.5, G1/2 and other external threads
response time 10ms
Forms of pressure Gauge pressure G
certification program Intrinsic safety type E, RoHS, EU safety standard CE
Electromagnetic Compatibility Electromagnetic radiation: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2

Unit conversion: 1Kg/cm ²=14.2PSI 1Bar=14.5PSI
