Product Details
Technical specifications
| Temperature sensing element | Pt1000, Pt100, Ni1000, NTC3K, NTC10K (Type 2&Type 3), NTC20K, DS18B20, etc |
| Humidity sensing element | High precision humidity sensitive capacitor |
| Temperature measurement range | 0-35 ℃, 15-35 ℃, 0-50 ℃, -20-80 ℃ |
| Humidity measurement range | 0～100%RH |
| Temperature measurement accuracy | ±0.2℃(@25℃); ± 0.5 ℃ (full range) |
| Humidity measurement accuracy | ±2%RH;±3%RH;±5%RH (@25℃ , 30%RH～80%RH) |
| output signal | 4～20mA;0～5V; 0-10V; RS485/RS232 (factory selection) |
| communication interface | RS485 interface, Modbus RTU protocol |
| working power supply |
24Vdc/ac±20%; 24Vdc (two-wire system); 12-30Vdc (only used for temperature and humidity transmitters with RS485/RS232 output) |
| response time | <15 seconds (@ 25 ℃) |
| working environment | 0-70 ℃, 0-95% RH, no condensation |
| shell protection | IP30 |
| display type | LCD display |
| housing material | ABS、PC |
| Environmental standards | RoHS |

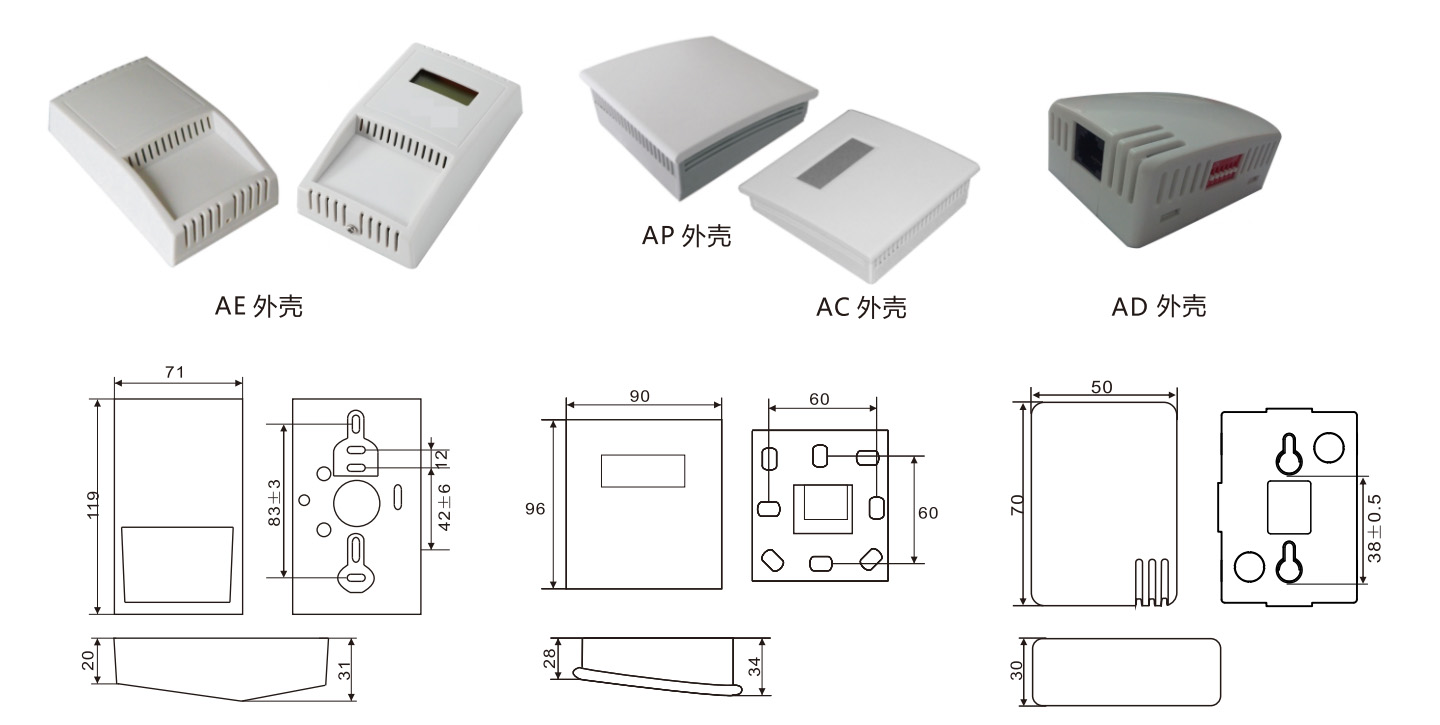

Outline dimension drawing (mm)
