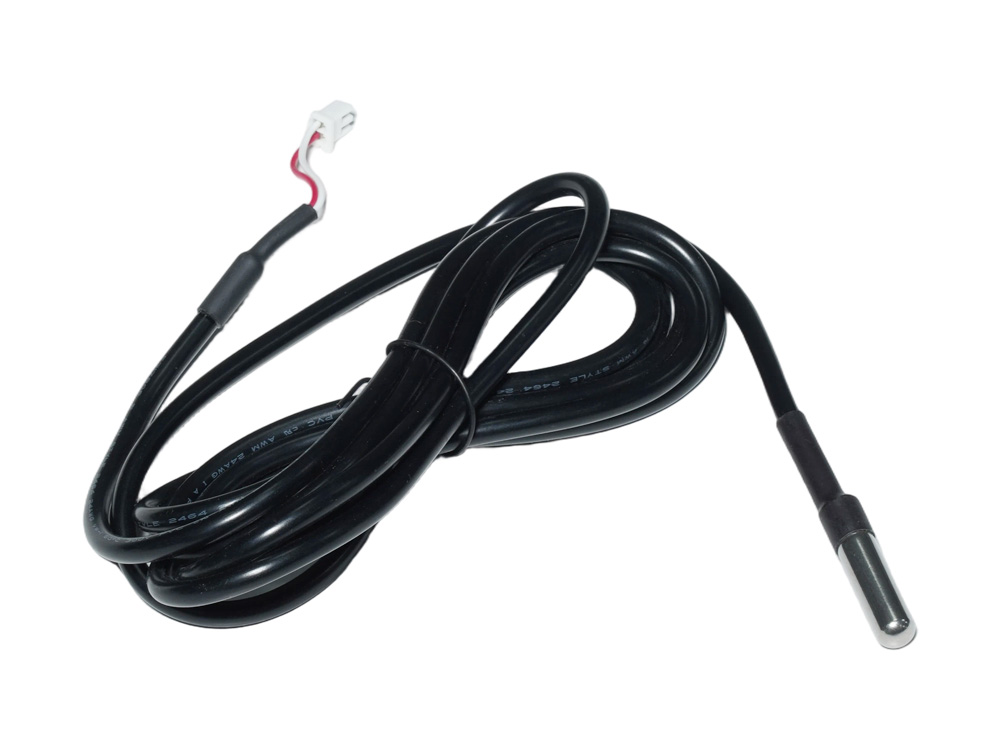

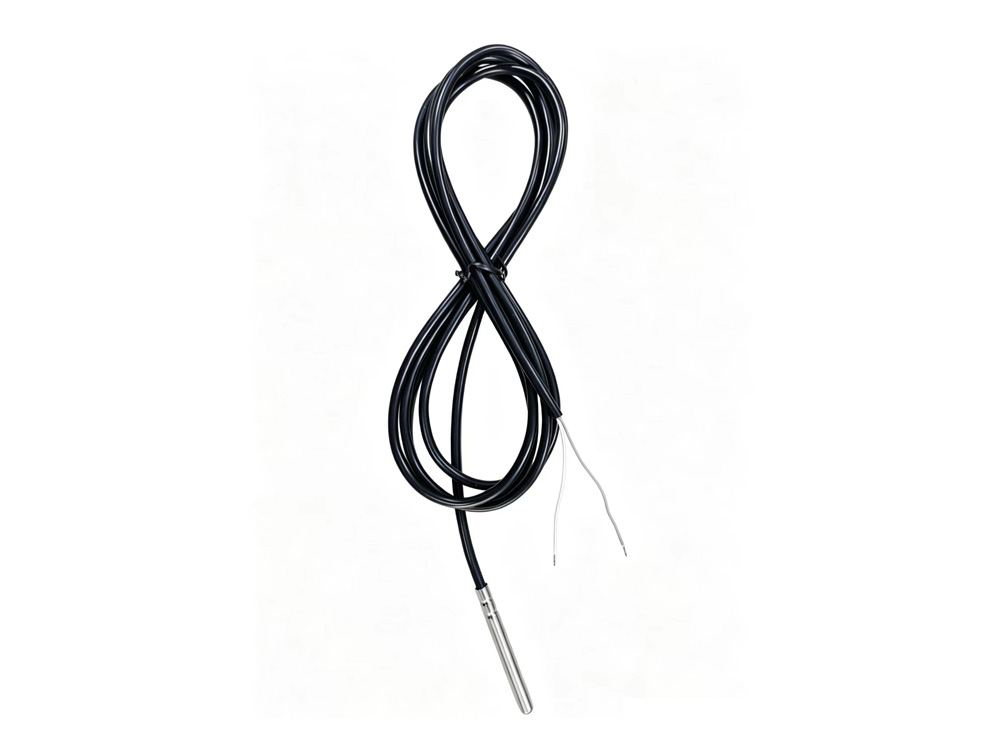

Surface temperature sensors and transmitters can measure the surface temperature of solids. When installing, simply press the connector onto the surface of the object being measured. It has the characteristics of corrosion resistance, fast thermal conductivity, and easy installation. This product is widely used in temperature measurement applications such as batteries, communication base stations, oil pipes, water pipes, gas pipes, textile machines, air conditioners, freezers, grain warehouses, and cable trays in computer rooms.
Product Details
Technical specifications
| sensing element | Pt1000, Pt100, Ni1000, NTC3K, NTC10K (Type 2&Type 3), NTC20K, DS18B20, etc |
| Temperature measurement range | 0~35℃; 0~50℃; 0~100℃; -50~50℃; -20~80℃; -40~60℃ |
| Temperature measurement accuracy | ±0.2℃(@25℃); ± 0.5 ℃ (full range) |
| working environment | -20~80 ℃, 20~95% RH without condensation |
| output signal | 4~20mA；0~5V； 0~10V; Pt resistance value; NTC resistance value |
| working power supply | 24Vac/dc |
| housing material | PC、ABS |
| Environmental standards | RoHS |
